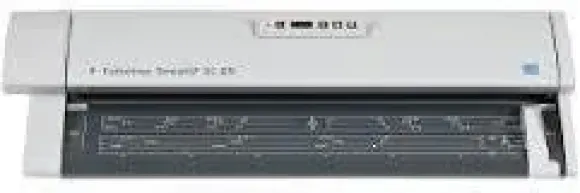

Colortrac SmartLF SC25c

SC 25m MonoSC 25c ColorSC 25e Express ColorUpgradeablem $24 c m $25 ec $26 eN/AOptical Resolution1200dpi1200dpi1200dpiInterpolated Resolution9600dpi9600dpi9600dpiMax Scan Width25in (63.5cm)25in (63.5cm)25in (63.5cm)Max Media Width27in (68.6cm)27in (68.6cm)27in (68.6cm)Max Media Thickness0. 08in (2mm)0. 08in (2mm)0. 08in (2mm)Min Document Size6. 0in (152mm) x 6.

0in (152mm)6. 0in (152mm) x 6. 0in (152mm)6. 0in (152mm) x 6. 0in (152mm)Max Scan LengthDepends on file format and software application.

See scanner software informationAccuracy+/-0. 1% +/-1 pixel+/-0. 1% +/-1 pixel+/-0. 1% +/-1 pixelAuto Size DisplayDetects and displays the width of the document as it is loaded (mm or inches)Imaging TechnologySingleSensorSingleSensorSingleSensorData Capture (color/grayscale)16-bit48-bit/16-bit48-bit/16-bitColor SpaceN/ARAW RGB/sRGBRAW RGB/sRGBScan Speed 1-bit mono (in/sec) @200dpi13. 0013. 0013. 00Scan Speed 8-bit grayscale (in/sec) @200dpi13.

0013. 0013. 00Scan Speed 24-bit color (in/sec) @200dpiN/A3. 06. 0Paper PathFace-up, front entry, rear exit or rewind to front Face-up, front entry, rear exit with optional Document Return GuideInterfaceSuperSpeed USB 3. 0 data transfer rates up to 85MB/sec Optimised USB2 transfer rates upto 35MB/secPower RequirementsExternal power supply 100~240 VAC autosensing +/-10%, 50-60 Hz Scanner power consumption 53W (scanning) 5W (standby)Operating conditions10oC – 35oC, 35% – 80% RH non-condensingWeight & Dimensions (WxHxD)Scanner: 39. 7lbs (18kg) 34. 2in x 6in x 15in (86.8 x 15.2 x 38.1cm) Packaged:

46. 3lbs (21kg) 39. 8in x 9. 3in x 20. 1in (101cm x 23.6cm x 51.1cm)Operating System and Interface(s)Windows 8, Windows 7, Windows Vista, Windows XP* 32-bit and 64-bit architectures with USB3 or USB2 interfaceCertificationsCB, CE, FCC, CCC, UL, RoHS compliant. ENERGY STAR(R) qualifiedIncluded SoftwareSmartWorks EZ Touch – SCAN/COPY/PRINT/EMAIL software – supports TIFF, JPEG & PDF for Touch enabled screen or regular mouse and keyboard ISIS interface driver giving EDM/EDC capability (2013)Optional SoftwareSmartWorks EZ Touch Plus – Extends the editing toolset and USB control of the EZ Touch’in-the-box’ standard scan software SmartWorks Pro SCAN & COPY software – industry leading,professional scanning and color-copying software SmartWorks Pro SCAN software – industry leading, professional scanning software SmartWorks Pro COPIER software – industry leading, professional color-copying softwareAccessoriesFloor stand – includes media catch basket PC Mounting Option for Floor Stand – accepts monitor, keyboard & PC) Repro Stand – adjustable height to fit most popular LF Printers. Includes Keyboard Tray, Flat Screen mounting kit & PC support tray Paper Return Guide (25) – curved fitment to redirect flexible scanned document forward to Operator. Can be easily removed when not required or for scanning non-flexible mediaNotes* USB3 is not available with Windows XP computers.

SC Series scanners with XP must be connected via USB2. The scanner may need to be slowed down for high scan resolutions and/or wider documents. No extra interface cable is required. This is a limitation of Windows XP. Thick documents up to 2mm must be flexible.

Colortrac does not guarantee quoted speeds for thick media. Thick media should be scanned at reduced speeds to obtain optimal image quality. For heavy and/or thick materials the operator may need to support the document as it enters and exits the scanner. For larger sizes of heavy and/or thick media Colortrac recommend the scanner be placed first on a flat surface and the operator support the document as it enters and exits the scanner. Colortrac recommends the Paper Return Guide be removed when using heavy and/or thick media in the scanner.

. . .
