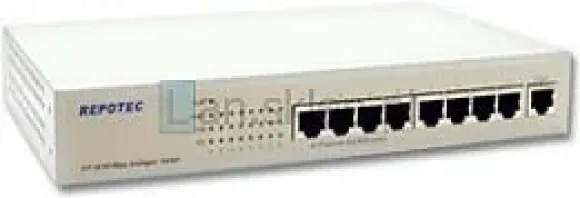

Repotec RP-1708i

Switch zarządzalny 8 portów Fast Ethernet, metalowa obudowa Charakterystyka: Repotec RP-1708i to switch zarządzalny wyposażony w 8 portów RJ-45 10/100Mbps Ethernet / Fast Ethernet. PrzełącznikRP-1708iobsługuje funkcję zdalnego zarządzania przez SNMP, HTTP i Telnet. Dodatkowo urządzenie obsługuje wiele zaawansowanych funkcji takich jak np. 802. 1Q VLAN, 802.

1x Port Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, QoS. Domyślne dane do logowania: Login / Hasło: admin/123456 Funkcje: Support out-band console and in-band SNMP/Http/Telnet management interface Prevent packet loss with back pressure and IEEE802.

3x flow control functions Support specify the service and IP address to control switch for management 4 priority queues are supported on each port for QoS application Support IEEE 802. 1p Class of Service with 4-level priority queuing. Support ToS/ DiffServ priority operation , WRR /SPQ scheduling algorithm Support IEEE 802. 1Q VLAN Support Static Mac Address access limit on port Support IEEE 802. 1x Port Security function Support IEEE 802.

1w Rapid Spanning Tree function Support ingress/egress rate control on port (64K~100Mbps) Support broadcast / flooding / multicast traffic control Support IP Multicast with IGMP snooping and MVR function Support Loopback detection function Support DHCP client function Support RMON 1,2,3,9 Support Text configuration download and upload Low Power consumption, no fan inside Support remote port configuration setting and status monitoring Dane techniczne: Standards $499IEEE802. 3(10BaseT Ethernet ), IEEE802. 3u(100Base Fast Ethernet), $500IEEE802. 1D, IEEE802.

1P, IEEE802. 1Q, IEEE802. 1x, IEEE802. 1w Interface $5018* RJ45 ports, with 10/100Mbps, Full/Half duplex auto-negotiation and Auto-MDIX function Console Port $502RJ45 console port Buffer Memory $503256K Bytes Packet Buffer MAC Address $5044K Mac Table Size, 1536 Bytes Max Packet Size Flow Control $505Back pressure for half duplex, IEEE802. 3x for full duplex Management $506Out-band :

Console (Command Line Interface) $507In-band : SNMP/Telnet/Http SNMP agent $508Version. I, II, III $509Support MIB II(Interface), Bridge MIB, Etherlike MIB, Private MIB VLAN $510 802. 1Q VLAN, 256 co-current groups maximum from eight active VLAN ID blocks QoS $511Four priority queues per port, Port-based & 802. 1p tagged-based/ ToS / DiffServ priority operation , WRR /SPQ scheduling algorithm Spanning Tree $512Support IEEE 802.

1w Rapid Spanning Tree Port Mirror $513Yes, for Engress/Ingress packets, supports DA/SA filtering function Static Mac ID Access Limit $514Yes, limit on port IEEE 802. 1x $515Yes, Support Transparent and Authentication modes Rate Control $516Yes, limit on port for both Ingress/Engress traffic from 64Kbps to 100Mbps IP Multicast $517Yes, Support IGMP Snooping and MVR function Software Upgrade $518Out-band: Xmodem $519In-band: TFTP Text Configuration $520Yes, for easy edit LED Indicators $521Per Port : Link/Activity, 100Mbps, FDX $522Per Device :

Power Power Supply $523Internal Power supply: 100~240VAC, 50/60 Hz Power Consumption $5245.
